Math & Geometry

TinyFFR has a replete API for 3D/2D math and geometry operations. This page serves as a quick overview of each available mathematical type and its intended usage.

This page attempts to be beginner-friendly and does not assume any prior linear algebra / 3D math knowledge. Depending on your personal level of knowledge you may wish to skip some paragraphs that explain concepts you're already familiar with.

Finally, note that this page only describes the surface-level, most common operations available on each mathematical type. Explore the types in the reference docs or via your IDE to see all defined functions.

Vectors#

All 3D worlds and scenes in TinyFFR are described by a three-dimensional cartesian co-ordinate system. These systems use three axes all defined to be orthogonal to each other, known as the X-axis, the Y-axis, and the Z-axis.

Location#

A Location instance represents a single point in 3D space. It defines three properties, X, Y, and Z, and these properties denote a distance along the X, Y, and Z axes. Specifically, the value in X, Y, and Z indicate how far from the world origin this location is. Positive values indicate movement in one direction along their respective axis, negative values indicate movement in the opposite direction. The positive and negative directions are defined arbitrarily (see Conventions). The world's origin-point is defined as being at (X = 0, Y = 0, Z = 0).

Image of 3D cartesian system — The point "P" is a `Location` with `X` = `1f`, `Y` = `2f`, `Z` = `3f`.

The black arrows indicate the X-axis, Y-axis, and Z-axis.

The centre-point where all axes cross in this diagram is the aforementioned *world origin*.

Creating Locations#

// Create a location with X = 1, Y = 2, Z = 3
var location = new Location(1f, 2f, 3f);

// Create a location by implicit conversion from ValueTuple<float, float, float>
var location = (Location) (1f, 2f, 3f);

// Create a Location by modifying an existing one
var location2 = location1 with { X = 0f };

Common Operations#

// Calculate the distance between two Locations
var distance = location1.DistanceFrom(location2);

// "Move" a Location (Vects explained further below)
// (these lines produce an identical result)
var location2 = location1.MovedBy(new Vect(-1f, -2f, -3f));
var location2 = location1 + new Vect(-1f, -2f, -3f);
var location2 = location1 - new Vect(1f, 2f, 3f);

Direction#

It's common to want to describe a direction in 3D. Examples of directions include "Left", "Down", or really any arbitrary way you can point in 3D space. The Direction struct allows us to describe exactly this.

You can think of a Direction as an "arrow" pointing one specific way. The arrow does not have any defined position/location in space or any specific length, we just know which way it is pointing.

Direction Internals

Internally, a Direction does actually have a length and has X, Y, and Z properties just like a Location.

However, a Direction's length is always either 1f or 0f. TinyFFR manages the X/Y/Z properties to enforce this. This is done to make sure the Direction is always "unit length"-- in other words, Directions are secretly just specially-named unit vectors.

If you really want to use a Direction as a unit vector, the ToVector3() method will convert it to a System.Numerics.Vector3 for you.

For most intents and purposes it's better to think of a Direction as a more abstract concept (e.g. the arrow pointing one specific way). Its length is irrelevant. It's only in very niche scenarios that you should even need to access or care about the X/Y/Z properties of a Direction. They can not be set with a with statement.

There is a special case Direction known as the "None" direction. As its name implies it denotes the absence of any direction.

Creating Directions#

// Create a Direction using the built-in static fields
var dir = Direction.Forward;
var dir = Direction.Right;
var dir = Direction.None;

// Calculate the direction from one Location to another
var dir = location1.DirectionTo(location2);

// Calculate the direction of a Vect
// (Vects explained further below)
var dir = vect.Direction;

// Create a Direction using proportional weights
// (this specifies the RELATIVE length of the arrow along the
// three cartesian axes and is rarely useful. This is NOT setting
// the X/Y/Z properties directly, only their ratio)
var dir = new Direction(1f, 2f, 3f);

Common Operations#

// Get the opposite direction
// (these lines produce an identical result)
var dir2 = dir1.Flipped;
var dir2 = -dir1;

// Get the angle between two directions
// (these lines produce an identical result)
var angle = dir1.AngleTo(dir2)
var angle = dir1 ^ dir2;

// Rotate a direction
// (Rotations explained further below)
// (these lines produce an identical result)
var dir2 = dir1.RotatedBy(rotation);
var dir2 = dir1 * rotation;

Vect#

A Vect is almost identical to a Direction but has one key difference: It does have a specific length.

Vects still do not have any defined position/location in the world, just a constituent Direction and Length.

A Vect also has an X, Y, and Z property which indicate the length of the arrow along each axis.

Why 'Vect' instead of 'Vector'?

TinyFFR uses Vect instead of Vector as its main vector type name for four reasons:

The in-built System.Numerics C# namespace already defines a similar data type named Vector.
A "Vector" has an alternative meaning as a list/resizable array in some software contexts.
Location and Direction are actually vectors too, just specialized forms of vectors. Vect is specifically a vector that is not a Location or Direction.
It's not completely unexpected that someone may be using TinyFFR with other 3D/math libraries that also define their own "Vector" type.

Creating Vects#

// Create a Vect with from a Direction and length
// (these lines produce an identical result)
var vect = Vect.FromDirectionAndDistance(direction, 3f);
var vect = direction * 3f;

// Create a Vect representing the direction and distance between two Locations
// (these lines produce an identical result)
var vect = location1.VectTo(location2);
var vect = location1 >> location2;

// Create a Vect that is:
//      1 unit along the positive X direction,
//      2 units along the negative Y direction,
//      0 units along the Z direction
var vect = new Vect(1f, -2f, 0f);

// Create a Vect by implicit conversion from ValueTuple<float, float, float>
var vect = (Vect) (1f, -2f, 0f);

// Create a Vect that is 1 unit along every direction
var vect = new Vect(1f);

// Create a Vect by modifying an existing one
var vect2 = vect1 with { X = 0f };

Common Operations#

// Calculate Vect length
var length = vect.Length;

// Calculate Vect Direction
var dir = vect.Direction;

// Get a Vect with the same length but pointing in the opposite Direction
// (these lines produce an identical result)
var vect2 = vect1.Reversed;
var vect2 = -vect1;

// Adjust Vect length
var vect2 = vect1.WithLength(10f);
var vect2 = vect1.WithLengthIncreasedBy(10f);
var vect2 = vect1.WithLengthDecreasedBy(10f);
var vect2 = vect1.WithMaxLength(10f);
var vect2 = vect1.WithMinLength(10f);
var vect2 = vect1 * 10f; // Scale the length up by 10
var vect2 = vect1 / 10f; // Scale the length down by 10

// Adjust Vect Direction
var vect2 = vect1.WithDirection(dir);

// Add two Vects together
// (The resultant Vect is the combined arrow + length you'd get from moving along
// the first Vect and then the second one;
// see https://mathworld.wolfram.com/VectorAddition.html)
var vect3 = vect1 + vect2;

// Subtract one Vect from another
// (The resultant Vect is the combined arrow + length you'd get from moving along
// the first Vect and then moving along the "Reversed" second one)
var vect3 = vect1 - vect2;

// Rotate a Vect
// (Rotations explained further below)
// (these lines produce an identical result)
var vect2 = vect1.RotatedBy(rotation);
var vect2 = vect1 * rotation;

Angles & Rotations#

Angle#

The Angle type represents any angle in 2D or 3D. The (ostensible) unit of any Angle is degrees.

Angle Internals

Internally, angles are actually stored as values in radians for performance reasons, hence the 'ostensible' qualifier above.

However, every public method/property on Angle works to convert to/from degrees, unless otherwise specified. Therefore you can think of all Angles as being in degrees.

The reasoning behind this decision is long-winded, but if you're interested you can read here: Angle.cs at commit #d660e3db

Creating Angles#

// Create an Angle that is 90°
// (these lines produce an identical result)
var angle = new Angle(90f);
var angle = 90f;

// Create an Angle using another unit
var angle = Angle.FromRadians(Math.PI);
var angle = Angle.FromFullCircleFraction(0.5f);

// Calculate the Angle between two Directions
// (these lines produce an identical result)
var angle = Angle.FromAngleBetweenDirections(dir1, dir2);
var angle = dir1 ^ dir2;

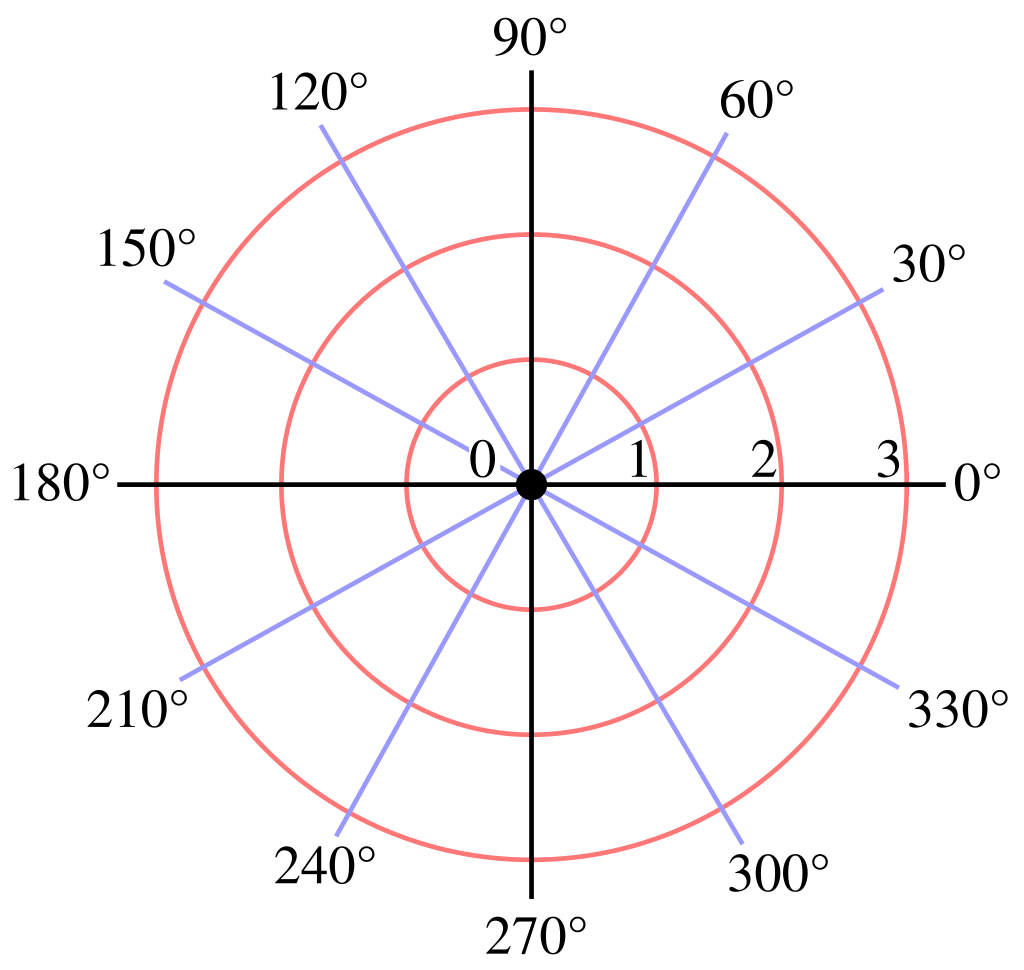

// Find the polar Angle of a 2D vector
// (XYPairs explained further below)
var angle = xyPair.PolarAngle!.Value;

Common Operations#

// Add or subtract angles
var angle3 = angle1 + angle2;
var angle3 = angle1 - angle2;

// Multiply / divide (scale) angle
var angle2 = angle1 * 3f;
var angle2 = angle1 / 3f;

// Get opposite angle
// (these lines produce an identical result)
var angle2 = angle1.Negated;
var angle2 = -angle1;

// Convert back to some unit
var degrees = angle.Degrees;
var radians = angle.Radians;

Rotation#

A Rotation instance has two properties, Angle and Axis, describing a turn of N degrees (the Angle) around a given Direction (the Axis).

For example, let's visualize a Rotation of 90° around Direction.Down: Imagine holding a pencil in your hand and pointing it directly at the floor (that's your Down axis). Then, imagine one side of the pencil has some writing on it facing away from your body, and then imagine turning the pencil so that the writing is now facing to your right: You just made a 90° rotation around the down axis(1).

When looking along the Axis direction, the Angle is a clockwise turn.

Rotations are not Orientations or Directions

Sometimes it can be easy to accidentally think of rotations as being facing directions or orientations of objects; but this is incorrect. Rotations are strictly a description of how to transition things in 3D space by turning them.

For example, a Rotation might represent the transition of a teacup from being right-way-up to being upside-down. The Rotation instance does not represent the teacup being in any particular orientation or ending up in any particular orientation, rather it simply represents a turn of a certain amount around a particular axis (i.e. 180° around Left).

If you apply the same Rotation twice to the teacup, the teacup will end up being in the same orientation as it started in, because you're simply applying the exact same 180° turn twice.

Creating Rotations#

// Create an Rotation that is 90° around Down
// (these lines produce an identical result)
var rot = new Rotation(90f, Direction.Down);
var rot = 90f % Direction.Down;

// Create a Rotation derived from a start and end Direction
// (these lines produce an identical result)
var rot = Rotation.FromStartAndEndDirection(dir1, dir2);
var rot = dir1 >> dir2;

// Modify an existing Rotation
var rot2 = rot1 with { Angle = 100f };
var rot2 = rot1 with { Axis = Direction.Forward };
var rot2 = rot1.WithAngleIncreasedBy(10f);
var rot2 = rot1.WithAngleDecreasedBy(10f);
var rot3 = rot1.WithAxisRotatedBy(rot2); // More niche

Common Operations#

// Rotate a Direction or a Vect
// (these lines produce an identical result for the given direction/vect)
var dir2 = dir1 * rot;
var vect2 = vect1 * rot;
var dir2 = dir1.RotatedBy(rot);
var vect2 = vect1.RotatedBy(rot);
var dir2 = rot.Rotate(dir1);
var vect2 = rot.Rotate(vect1);

// Rotate various Geometric types
var line2 = line1 * rot;
var plane2 = plane1 * rot;

// Reverse a Rotation
// (these lines produce an identical result)
var rot2 = rot1.Reversed;
var rot2 = -rot1;

// Scale a Rotation
var rot2 = rot1 * 0.5f;
var rot2 = rot1 / 2f;

// Combine Rotations
var rot3 = rot1.CombinedAndNormalizedWith(rot2);

// Interpolate (blend between) Rotations
var rot3 = Rotation.Interpolate(rot1, rot2, 0.5f); // 0.5f = 50% between rot1 and rot2

Shapes#

Plane#

A Plane represents an infinitely-long-and-wide surface that splits 3D space in two halves.

Planes are specified in TinyFFR by two properties:

A Normal which is a Direction pointing exactly orthogonally out of the plane (that's the red arrow in the diagram above);
A PointClosestToOrigin which is a Location on the plane closest to the world origin ((0, 0, 0)).

Creating Planes#

// From just a Normal. The PointClosestToOrigin will be set as (0, 0, 0), meaning
// the Plane will go "through" the world origin
var plane = new Plane(direction);

// From a Normal and any point that is on the plane.
// The point supplied can be the closest point to the origin but it doesn't have to be.
// The constructor will calculate the PointClosestToOrigin automatically.
var plane = new Plane(direction, location);

// From a Normal and a distance along that Normal direction that you
// must travel from the world origin to get to the plane
var plane = new Plane(direction, distance);

// From a PointClosestToOrigin only
// The second parameter specifies whether the Normal points towards the world origin
var planeNullable = Plane.FromPointClosestToOrigin(direction, true);

// From a triangle in 3D space
// The Normal will face "out" from the triangle, where the "out" facing direction is the one
// you see when the given points cycle anti-clockwise
var planeNullable = Plane.FromTriangleOnSurface(location1, location2, location3);
